1-local/ 2-remote users 32 port CAT5 KVM over IP Switch - HT5232 (EOL)

1-local/ 2-remote users 32 port CAT5 KVM over IP Switch - HT5232 (EOL)

(1 đánh giá)

HT5232

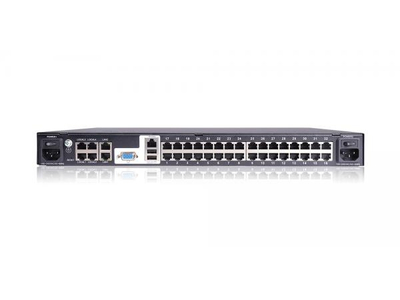

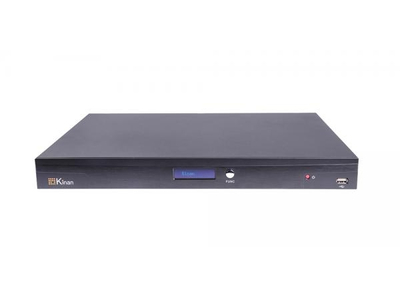

HT5232 is a 32 port digital KVM Switch with dual power supply and two LAN access ports, up to 32 servers can be controlled from local and remote console with single HT5232. It supports remote access and management to different servers and network devices. Simultaneously share 1 local console, 4 extended local consoles and 2 remote users to the attached servers.

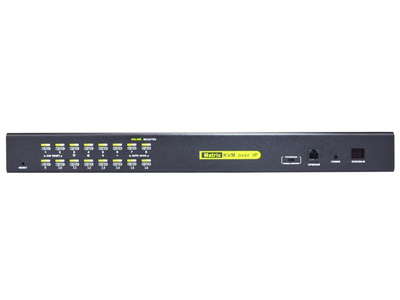

Sản phẩm đã ngưng sản xuất và thay thế bằng model HT1232

Vui lòng gọi

Hardware Features

  • Compact 1U steel construction - fit for standard 19" rack mounting.
  • 32 RJ-45 KVM connectors, convenient connection between the KVM and server via the KIM adaptor.
  • Supports 1 local user and 4 extended local users (local workstation required).
  • Single IP access, it allows 2 IP users to access and control the server over a network.
  • Dual power supply, two 10/100/1000M NICs for redundant LAN.

HD Resolution

  • Local video resolution is up to 2048x1536@60Hz.
  • Remote video resolution is up to 1920x1080@60Hz.
  • Automatically adjust the remote desktop resolution to fit for different servers with different resolution.

Management

  • Supports BIOS level access and control.
  • Remote access to the server via Browser, no software needed.
  • Local hotkeys: ALT + number key, administrator can connect the regularly used servers to 1-9 KVM ports for convenient switching.

Advanced Security

  • Remote Authentication Support: LDAP, RADIUS.
  • Flexible encryption design allows users to choose different encryption needs about DES, SDES and AES which strictly conform to the military FIPS46-3/FIPS197 standards.
  • Configurable user and group permissions for server access and control.
  • Supports security U key.

Management Interface

  • English graphical interface.
  • Full -screen or sizable and scalable Virtual Remote Desktop.

Other Functions

  • Convenient centralized management for the target servers with Kinan DC-SG management software.
