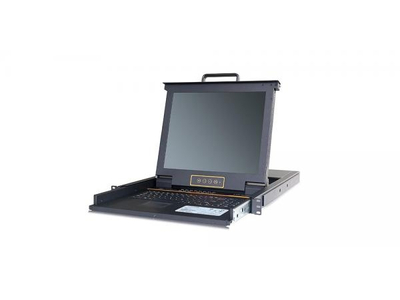

LCD KVM over IP Console with 32 port CAT5 KVM-17" - LC2732i

Hardware feature

•  One 32 port CAT5 KVM switch is integrated in 1U height console, it controls multiple computers via a set of device(LCD monitor, keyboard, mouse)
•  Standard RJ-45 connector-Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable

High Performance Touchpad

•  Touchpad with trackball- Eliminates the need for a separate, external mouse

Keyboard

•  Multi-language support--English, Russian, German, French, Korean, Swedish and Italian, etc.
•  Full size 99 keys keyboard with integrated number pad

Management Way

•  Supports 1 remote user access to the KVM via network browser with TCP/IP communication protocol
•  Convenient computer switching via front panel LEDs, OSD menu and mouse
•  Remote access to the KVM(Keyboard, video and mouse) through modem
•  Support any operating system even in BIOS level, during start up or in blue screen
•  Supports JAVA browser remote control
•  Auto scan feature for monitoring user-selected computers
•  Broadcast mode--operations simultaneously performed on all selected computers

High Resolution

•  17” TFT LED monitor with highlight, high definition and high resolution
•  Local video resolution:1280 x 1024 @75H,remote video resolution:1600 x 1200 @ 60Hz
•  Automatically adjust video resolution when switching between servers

Cascade Feature

•  Directly access and control up to 32 servers with single LC2732i
•  By cascading to another 31 switches, as many as 1024 servers can be controlled

Security

•  Two level password security--only authorized users view and control computers; up to four users and an administrator with a separate profile for each
•  All transmitting data are encrypted with SSL 256 bits

 SSL certificate management

Wide Compatibility

 Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
 Supports server form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
