XW1608 - 8 Port 15.6” FHD LCD KVM Console

XW1608 - 8 Port 15.6” FHD LCD KVM Console

(1 đánh giá)



2 năm

Short depth: 360mm Rack-mountable in 1U system rack Dual power supply 15.6” FHD LCD monitor Resolution is up to 1920 x 1080@60Hz

13,172,000 đ 16,608,600 đ

13,172,000 đ

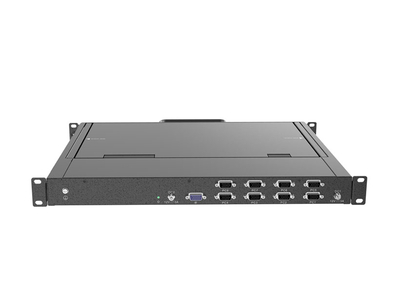

  • The XW1608 1U rackmount console is the ideal solution for ETC specialized rack, 5G rack, network specialized rack and standard server rack. Featuring an integrated 15.6” LCD display, full-99 key keyboard and touchpad, all in a 1U rack-mountable housing, it supports the shortest mounting depth: 360mm. It also features a dual power supply redundancy, largely improve the work efficiency of the whole KVM and server system. It is easy and fast to install the KVM console; you just need to connect corresponding cables to the right ports of KVM and its module without software configuration. This console is designed with two anti-vibration fixing screws on the front panel to prevent the console during transportation and operating.
  • Features
  •    Rack-mountable in 1U system rack
  •    Dual power supply
  •    15.6” FHD LCD display, 99-key keyboard, touchpad
  •    Resolution up to 1920 x 1080@60Hz
  •    Constructed of heavy-duty steel in a 1U housing
  •    Short depth: 360mm
  •    High resolution and high flexibility with touchpad; with two function buttons and scroll wheel
  •    Dual power supply redundancy design
  •    A single USB console controls up to 8 computers
  •    Dual interface – supports computers with PS/2 and USB keyboard and mouse
  •    Auto PS/2 and USB interface detection
  •    Two level password security – support 1 administrator user and up to four users, only administrator user can give user the right to access and view the server.
  •    Broadcast mode – operations simultaneously performed on all selected computers
  •    Multiplatform support – Windows, Linux, Mac and Sun
  •    Supports multimedia USB keyboard(PC, Mac and Sun)
  •    USB or PS/2 keyboard emulation – computer boot even the console focus is else where
  •    Convenient computer switching via front panel pushbuttons, hotkeys, OSD menu
  •    Auto scan feature for monitoring user-selected computers
  •    Hot pluggable – add or remove computers without having to power down the switch

Package Contents

  •    1x XW1608 short depth LCD KVM Switch
  •   1x Power Cord (Regional)
  •   2x Mounting Rails
  •   8x USB+VGA KVM Cable(1.8m/6ft)
  •   1x Quick Start Guide


Connection Diagram


kinan xw1608.kvm.vga-lcd-kvm-switch.diagram


Model No. XW1604 XW1608
Computer Connections Direct 4 8
Max 4 8
Port Emulation Keyboard, Mouse PS/2, USB
LCD Monitor LCD type FHD TFT
View area 15.6 "
Optimum resolution 1920*1080@60Hz
Display color 262K
Brightness 250cd/m²( T y p )
Contrast ratio 800 : 1 ( T y p )
Pixel pitch(mm) 0.17925(H) × 0.17925(V)
Mouse X/Y resolution >1000 points /inch, ( 40 points/mm )
Scroll wheel Supports scroll wheel function
Keyboard 99 keys(82 keys main keyboard +17 independent small numeric keyboard)
Port Selection Pushbuttons, hotkeys, OSD menu
Input Power DC12V / 2A
Power Consumption 9W 10W
Operating Temperature 0 – 40 ℃
Storage Temperature -20 – 60 ℃
Humidity 0 – 80% RH, non-condensing
Net Weight 10kg 10kg
Product Dimension (W × D × H) 448mm×360mm×42.5mm
Package Dimension (W × D × H) 615mm×360mm×185mm
