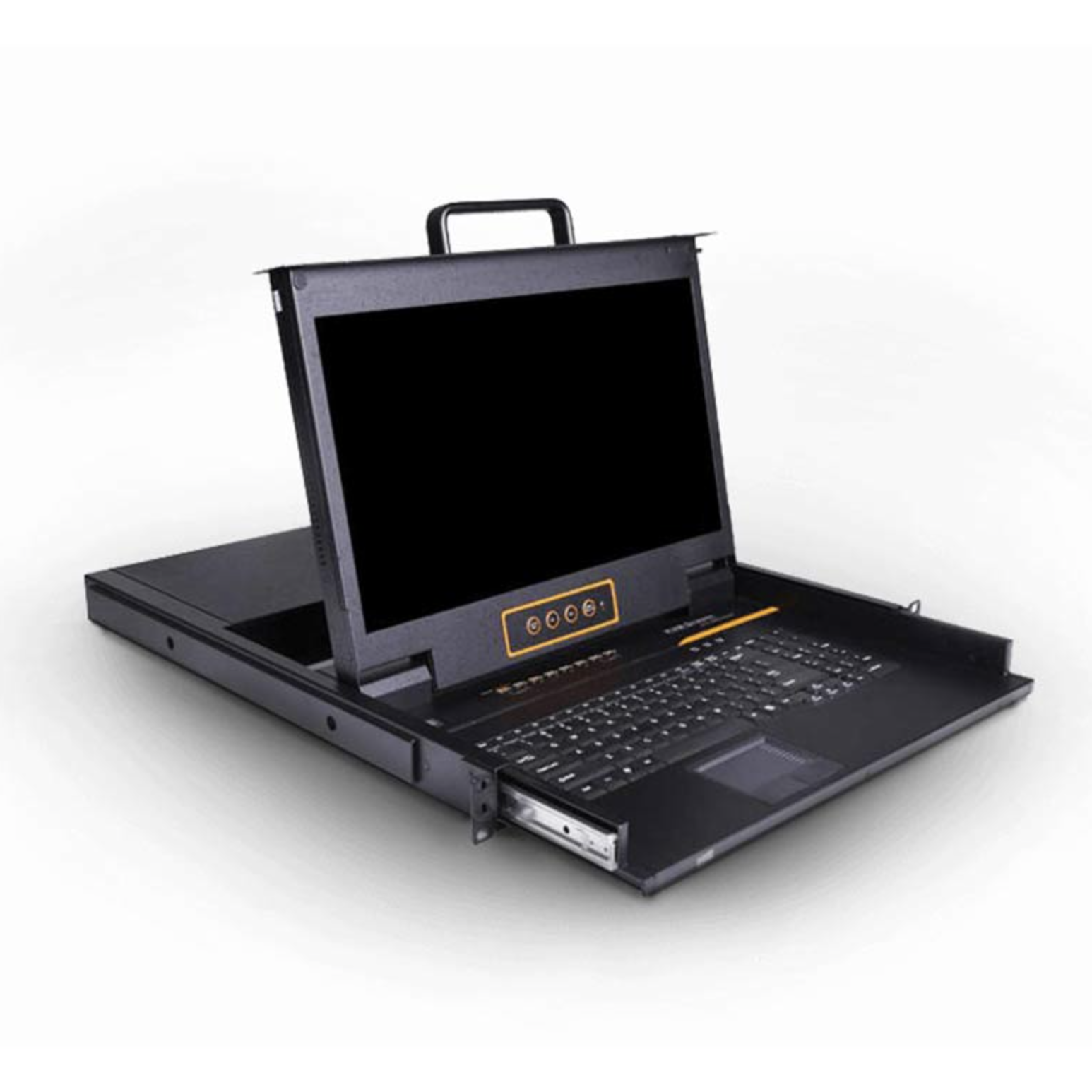

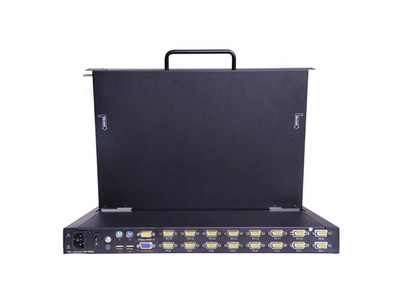

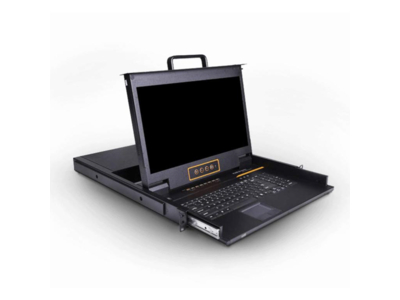

Single Rail 16 Port 18.5″ VGA LCD KVM Switch - XW1816
XW1816
Trung Quốc
24 tháng
Kinan XW1816 features a flexible LCD display, built-in keyboard, touchpad, and 16 VGA ports. Up to 16 computers or servers can be connected to this VGA KVM switch to deliver signals. Users can easily control multiple computers simultaneously to achieve centralized management.
Vui lòng gọi
IXW1816 is easy to install and use. The installation of this switch is placing it in the cabinet and connecting right cables to appropriate interfaces. Its user-friendly functions allow users to switch signals of computers via optional switching methods including front panel LEDs, keyboard hotkeys and on-screen-display menu. In addition, no software configuration is needed. Importantly, this VGA KVM switch with 18.5″ screen is compatible with multiple hardware platforms and operating systems.
Hardware Features
- XW1816 is designed with an 18.5″ LCD display, built-in keyboard, touchpad, and 16 VGA ports.
- Connect to a server or computer via standard VGA connectors.
- The LCD module is flexible and the largest angle it supports is 108 degress.
- The USB ports support USB signals (keybord and mouse).
High Resolution
- The 18.5″ screen of this VGA KVM switch supports highlight, high definition and high resolution.
- Superior video quality is up to 1920 x 1080 @60Hz.
User - friendly function
- XW1816 KVM switch is compatible with multiple systems such as Windows, Sun, Unix and Linux and servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
- It has two level password security – only authorized users view and control computers.( 1 administrator & 4 user accounts)
- The keyboard supports multiple languages including English, Russian, German, French, UK and Spanish, etc. (Full 99 keys)
- Hardware Composition: Integrated KVM Console with a 18.5″ LCD display in 1U height space.
- Space-saving Design: Occupy only 1U rack space in the cabinet.
- Number of Computers: Up to 16 computers/servers can be controlled or managed through this VGA LCD KVM switch.
- Max Video Resolution: The max resolution is 1920 x 1080 @60Hz.
- Easy to Control: Support optional switch methods including front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
- Daisy-chain Connection: Support daisy-chain connection and control up to 256 computers.
- Flexiblility: The LCD display can be adjusted freely because it can be opened up to 108 degrees.

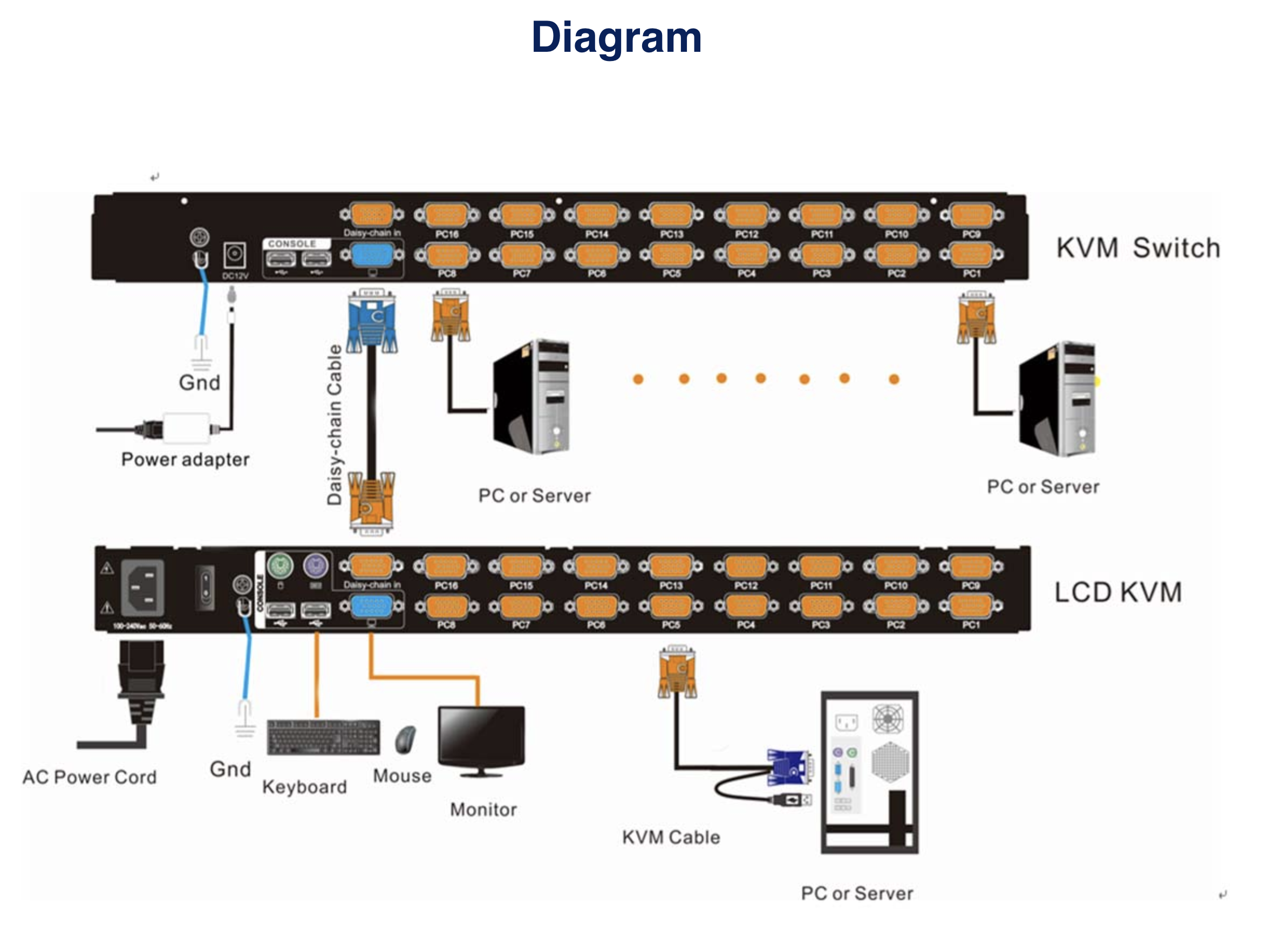

Diagram
Specification
| Function | XW1816 | ||
| Computer connections | Direct | 16 | |
| Max | 512 | ||
| Port emulation | Keyboard, mouse | USB | |
| LED monitor | LED model | FHD TFT | |
| View area | 18.47″ | ||
| Optimum resolution | 1920×1080@60Hz | ||
| Display color | 16.7 M | ||
| Brightness | 250cd/m²（ T y p ） | ||
| Contrast ratio | 1000 : 1 （ T y p ） | ||
| Pixel pitch(mm) | 0.213(H) × 0.213(W) | ||
| Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) | |
| Roll wheel | Supports scroll wheel function | ||
| Keyboard | 99 keys | ||
| (82 keys main keyboard +17 independent small numeric keyboard) | |||
| Port selection | pushbuttons, hotkeys, OSD menu | ||
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | ||
| Power consumption | 29W | ||
| Mounting distance | 686-770mm ( L=262mm) | ||
| Mounting bracket can be customized for other | |||
| mounting distance | |||
| Operating temperature | 0—50 ℃ | ||
| Store temperature | -20—60 ℃ | ||
| Humidity | 0—80% RH, non-condensing | ||
| Net weight | 12kg | ||
| Product dimension (W × D × H) | 448mm×560mm×42.5mm | ||
| Package dimension (W × D × H) | 765mm×615mm×185mm | ||
Datasheet:
