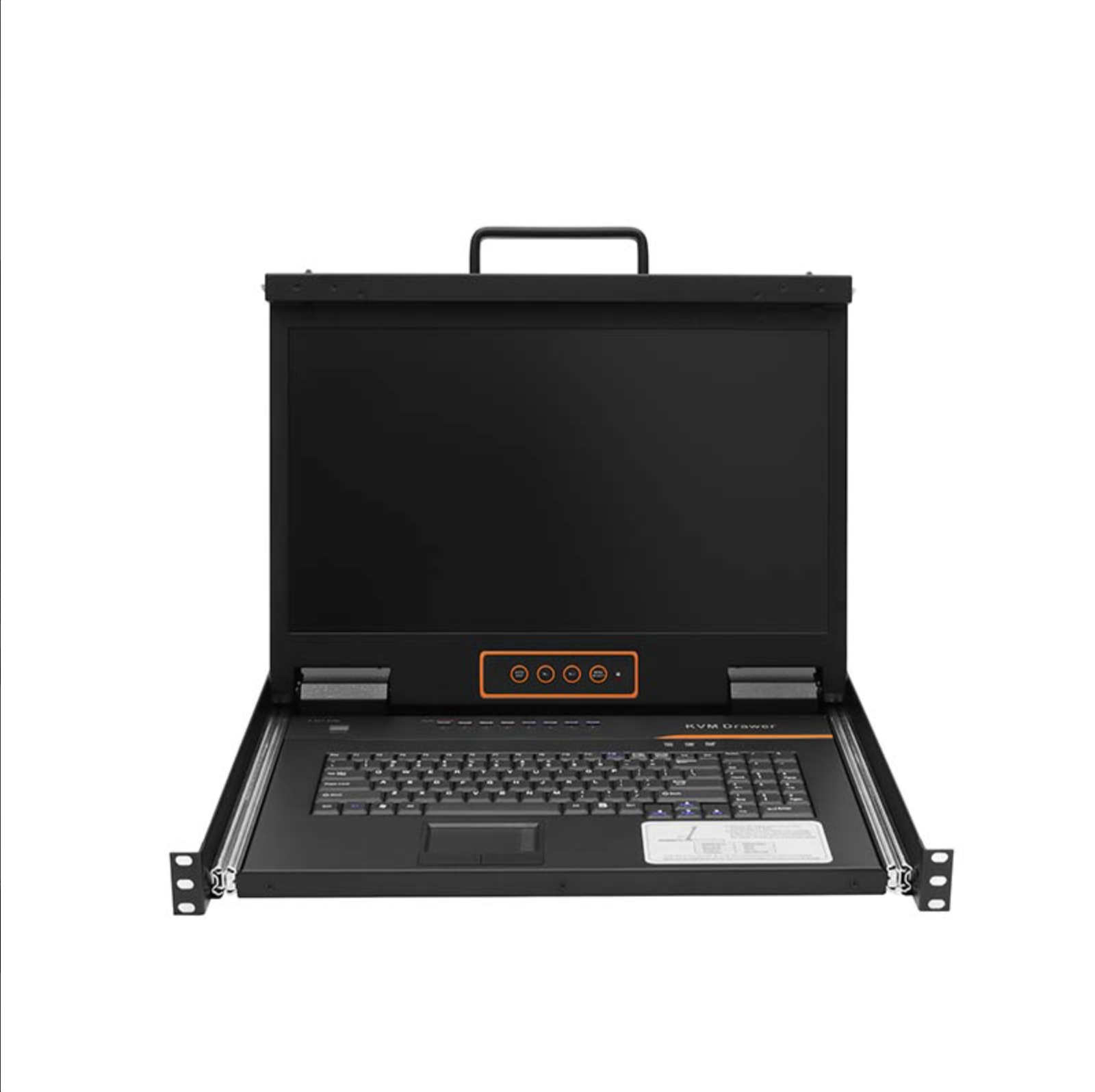

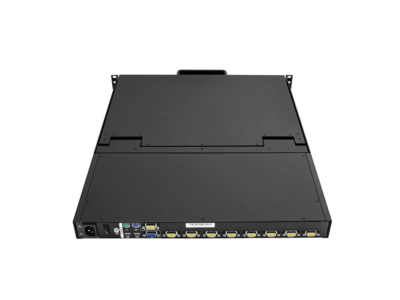

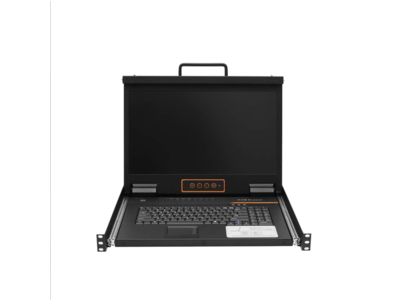

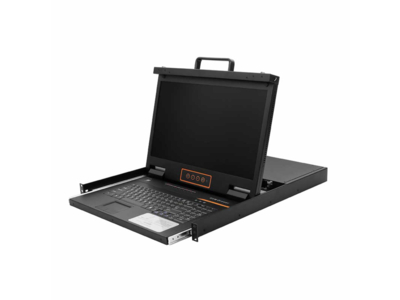

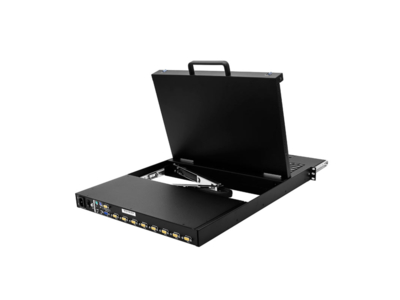

Single Rail 8 Port 18.5″ VGA LCD KVM Switch - XW1808
XW1808
Trung Quốc
24 tháng
Kinan XW1808 integrates multiple-port KVM switches in a 1U height console. It can control multiple computers with a set of device including monitor, keyboard and mouse, thus saves much cost and space to separately equip keyboard, mouse and monitor for every computer.
Vui lòng gọi
It is simple and easy to install this XW1808 VGA LCD KVM switch. The users just need to connect cables to the sight ports. Importantly, there is no software configuration needed. It allows users to control up to 8 computers conveniently. With the wide screen, users can easily watch something. What’s more, this LCD switch has wide compatibility, it is compatible with multiple hardware platforms and operating systems.
Hardware Features
- This switch consists of a 18.5″ LCD display, built-in keyboard, touchpad, and 8 VGA ports, occupying only 1U rack space.
- Connect to a server or computer via standard VGA connectors.
- LCD module can be opened up to 108 degrees to provide a comfortable viewing experience.
- Support computers with USB and PS/2 keyboard and mouse.
High Resolution
- 18.5″ monitor of this LCD KVM switch supports highlight, high definition and high resolution.
- Superior video quality is up to 1920 x 1080 @60Hz.
Security
- Two level password security–only authorized users view and control computers.
- Supports one administrator and four user accounts with a separate profile for each.
Keyboard Features
- Multi-language support–English, Russian, German, French, UK and Spanish, etc.
- Full size 99 keys keyboard with integrated number pad.
Wide Compatibility
- This 18.5″ 8-port LCD KVM switch is compatible with Windows, Sun, Unix and Linux.
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

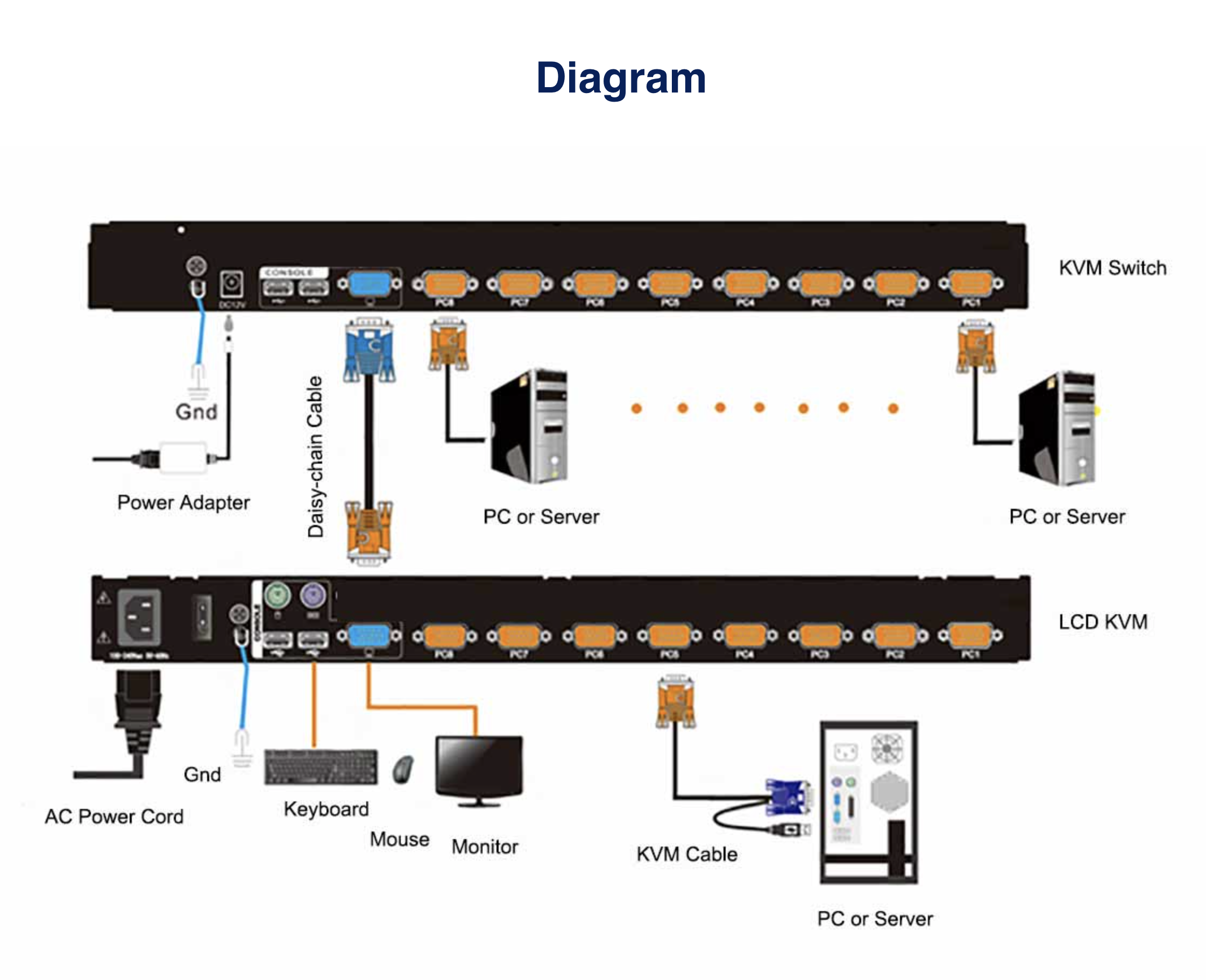

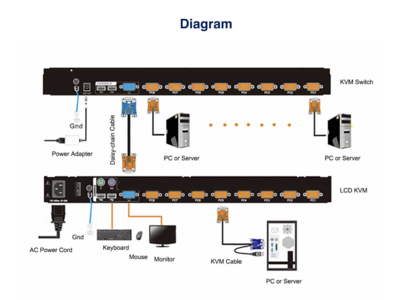

Diagram
Specification
|
Function |
XW1808 |
|
|
Computer connections |
Direct |
8 |
|
Max |
256 |
|
|
Port emulation |
Keyboard, mouse |
USB |
|
LED monitor |
LED model |
FHD TFT |
|
View area |
18.47″ |
|
|
Optimum resolution |
1920×1080@60Hz |
|
|
Display color |
16.7 M |
|
|
Brightness |
250cd/m²（ T y p ） |
|
|
Contrast ratio |
1000 : 1 （ T y p ） |
|
|
Pixel pitch(mm) |
0.213(H) × 0.213(W) |
|
|
Mouse |
X/Y resolution |
>1000 points /inch, (40 points/mm) |
|
Roll wheel |
Supports scroll wheel function |
|
|
Keyboard |
99 keys |
|
|
(82 keys main keyboard +17 independent small numeric keyboard) |
||
|
Port selection |
pushbuttons, hotkeys, OSD menu |
|
|
Input power |
100V- 240Vac, 50-60Hz, <1.5A |
|
|
Power consumption |
27W |
|
|
Mounting distance |
686-770mm ( L=262mm) |
|
|
Mounting bracket can be customized for other |
||
|
mounting distance |
||
|
Operating temperature |
0—50 ℃ |
|
|
Store temperature |
-20—60 ℃ |
|
|
Humidity |
0—80% RH, non-condensing |
|
|
Net weight |
11.8kg |
|
|
Product dimension (W × D × H) |
448mm×560mm×42.5mm |
|
|
Package dimension (W × D × H) |
765mm×615mm×185mm |
|
Datasheet:
