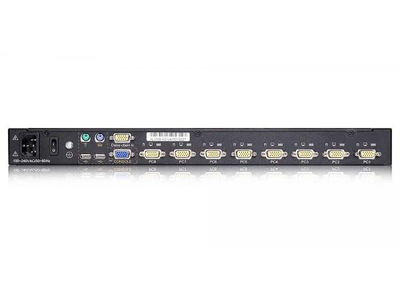

XL1708 - 17' LCD KVM Switch 8 Ports with 1U design

Hardware feature

•  One 8 port KVM switch is integrated in 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console
•  Standard VGA connector-Connect to a server or computer via a standard VGA connector
•  Quick release tabs-Insert or remove the device with ease

High Performance Touchpad

•  Touchpad with trackball- Eliminates the need for a separate, external mouse

Keyboard

•  Multi-language support--English, Russian, German, French, Korean, Swedish and Italian, etc.
•  Full size 99 keys keyboard with integrated number pad

Management Way

•  Convenient computer switching via front panel LEDs, OSD menu and mouse
•  Auto scan feature for monitoring user-selected compute
•  Broadcast mode--operations simultaneously performed on all selected computers
•  Hot pluggable --add or remove computers without having to power down the switch
•  Quickly select your computer by naming the server or inputting SN number of the server
•  On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator
• Unrestricted mode: No data encryption with transparent signal. No 2 level password login with easy access. No data coding on KVM signal transfer.

High Resolution

•  17” TFT LCD monitor with highlight, high definition and high resolution
•  Resolution is up to 1280 x 1024 @75H

Cascade Feature

•  Directly access and control up to 8 servers with single XL1708
•  By cascading to another 31 switches, as many as 256 servers can be controlled

Wide Compatibility

•  Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
•  Supports server form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
